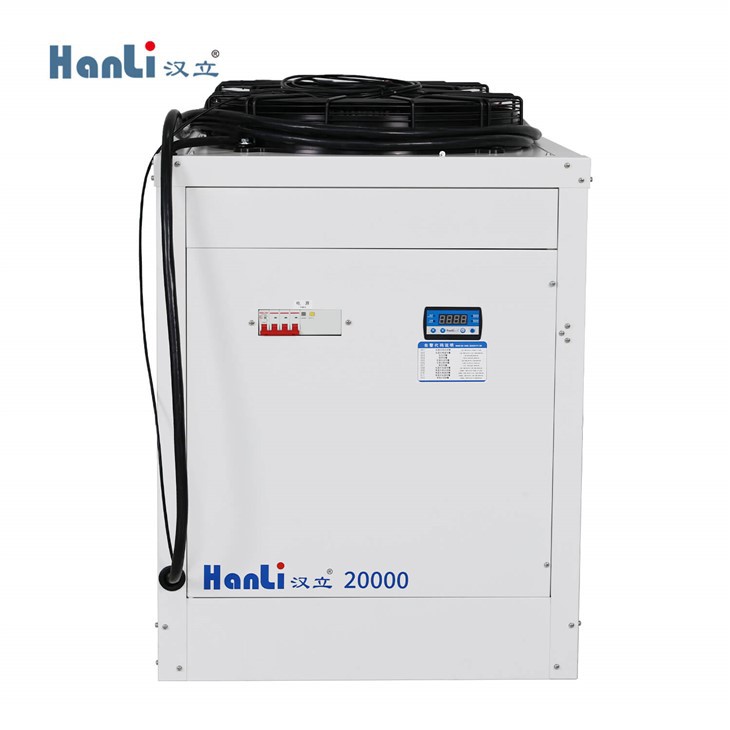

Chiller rau Fiber Laser Tej Tshuab Chaw tsim tshuaj paus
* Dual cua txias Circuit Court
* Ua kom txias txias
* Kub stability: ± 1 degree
* Daim ntawv thov ib puag ncig: 0℃~ 45 degree
- Khoom Taw qhia
Khoom nta
Lub tshuab cua txias dual thiab lub tshuab ua kom txias ua kom muaj kev ruaj ntseg nrog qhov tseeb ntawm ± 1 degree.
Qhov no ua rau nws haum rau siv nyob rau hauv ib puag ncig nrog kub xws li ntawm 0℃mus rau 45 degree.
Cov tub yees siv yog R32, uas yog ib puag ncig tus phooj ywg.
Tus neeg siv - tus phooj ywg maub los interface los nrog lub tswb ua haujlwm kom ceeb toom ntawm qhov sib txawv ntawm qhov xav tau kub. Tsis tas li ntawd, lub nraub qaum -mounted sau qhov chaw nres nkoj thiab pom dej theem ua kom yooj yim siv.
Nws yog optimized rau kev ua haujlwm siab ntawm qhov kub thiab txias thiab npaj rau kev siv tam sim.
Zuag qhia tag nrho, nws muaj kev ua haujlwm siab thiab kev tiv thaiv ib puag ncig.
|
|
Uint |
HL-20000-QG2/2 |
HL-20000-EH-QG2/2 |
|
Voltage & Zaus |
3p 380V / 50Hz |
3p 380V / 60Hz |
|
|
Rated zog |
kW |
20.0 |
20.0 |
|
siab tshaj tam sim no |
A |
40.0 |
40.0 |
|
Lub peev xwm txias |
kW |
50.0 |
50.0 |
|
Compressor zog |
kW |
9.820 |
9.303 |
|
Hluav taws xob cua sov |
kW |
3.0/5.0 |
|
|
Lub tshuab fais fab |
kW |
3.0 |
3.0 |
|
Ntxuam zog |
kW |
0.55×2 |
0.75×2 |
|
Qhov siab tshaj plaws cua ntim ntawm kiv cua |
m³/h |
8400×2 |
8450×2 |
|
Rated Flow ntawm qhov kub qis kawg |
L / min |
Ntau dua lossis sib npaug li 200 |
|
|
Rated siab ntawm qhov kub qis kawg |
bar |
5.0 |
|
|
Qhov siab tshaj plaws ntawm qhov kub qis kawg |
bar |
6.6 |
|
|
Dimensions ntawm qhov kub siab kawg interface |
G2-Φ32mm Pagoda pob qij txha * 2 |
||
|
Dej kub qhov chaw ntawm qhov kub tsawg kawg |
degree |
21-32 |
|
|
Rated Flow ntawm qhov kub siab kawg |
L / min |
4.5 |
|
|
Rated siab ntawm qhov kub siab kawg |
bar |
5.0 |
|
|
Qhov ntev ntawm qhov kub siab kawg interface |
G1/2-Φ13mm ceev connector * 2 |
||
|
Dej kub qhov chaw ntawm qhov kub siab kawg |
degree |
26-35 |
|
|
Dej kub tswj qhov tseeb |
degree |
±1 |
|
|
Dej Tank |
L |
160 |
|
|
Kev thov ib puag ncig |
degree |
-20-40 |
|
|
Coolant |
R32 |
||
|
Lub suab nrov |
dB (A) |
≈75 |
|
|
Tshuab dimension |
mm |
247 |
|
|
Net nyhav |
kg |
1590×750×1010 |
|
|
Packing dimension |
mm |
256 |
|
|
Qhov hnyav tag nrho |
kg |
1670×815× 1060 |
|
|
Haum cua txias nruab nrab |
Cov dej ntshiab, glycol daws (concentration Tsawg dua lossis sib npaug li 30%) |
||
