Laser Engraving Tshuab Laser Txias Thiab Traping
UV laser chiller yog hom khoom cua txias uas tsim tshwj xeeb rau kev siv nrog ultraviolet (UV) lasers. UV lasers yog siv nyob rau hauv ntau yam kev lag luam thiab kev kho mob daim ntawv thov, thiab lawv tsim ib tug tseem ceeb npaum li cas ntawm tshav kub thaum lub sij hawm ua hauj lwm. UV laser chiller siv lub tshuab cua txias kom tshem tawm cov cua sov uas tsim los ntawm lub laser thiab tswj qhov kub thiab txias, uas yog qhov tseem ceeb rau lub laser kev ua tau zoo thiab kev ua haujlwm ntev. Lub tshuab chiller tuaj yeem siv ntau txoj kev ua kom txias, suav nrog cua lossis kua txias, thiab tej zaum yuav raug tsim los rau qhov tshwj xeeb loj thiab lub peev xwm ua kom txias raws li qhov yuav tsum tau ua ntawm laser.
- Khoom Taw qhia
UV lasers feem ntau siv rau hauv kev tsim cov microelectronics, semiconductors, hnub ci hlwb, cov khoom siv kho mob, thiab lwm yam kev siv machining precision.
UV laser chillers ua hauj lwm los ntawm circulating ib tug coolant los ntawm lub laser, uas zoo tshem tawm cov cua kub ntau dhau thaum lub sij hawm lub lag luam laser. Qhov no pab tswj lub laser stability thiab raug, txhim kho nws tag nrho cov kev ua tau zoo.
Qee yam nta ntawm UV laser chillers muaj xws li:
- Lub peev xwm txias txias: UV lasers ua kom muaj cua sov ntau, yog li cov chillers yuav tsum muaj peev xwm tshem tawm cov cua sov kom sai thiab ua tau zoo. Ntau UV laser chillers muaj peev xwm muab lub peev xwm txias ntawm ob peb kilowatts lossis ntau dua.
- Kev tswj qhov kub thiab txias: Kev tswj qhov kub thiab txias yog qhov tseem ceeb rau kev tswj xyuas qhov ruaj khov thiab qhov tseeb ntawm UV lasers. Chillers feem ntau muaj qhov ntsuas kub thiab kev tswj xyuas uas tso cai rau cov neeg ua haujlwm teeb tsa thiab tswj qhov ntsuas kub xav tau.
- Tsis tshua muaj suab nrov thiab kev co: UV lasers feem ntau siv nyob rau hauv chav tsev huv si, yog li nws yog ib qho tseem ceeb rau chillers kom nyob ntsiag to thiab tsis muaj kev vibration.
- Compact design: Ntau UV laser chillers yog tsim los kom compact thiab yooj yim rau nruab, cia lawv mus rau hauv nruj qhov chaw nrog rau lwm yam khoom siv.
Zuag qhia tag nrho, UV laser chillers yog ib qho tseem ceeb ntawm txhua qhov kev ua haujlwm laser machining uas siv UV lasers. Los ntawm kev tswj lub laser qhov kub thiab txias, cov chillers no pab txhim kho kev ua tau zoo, raug, thiab tag nrho cov khoom tiav.
|
Qauv |
HL-5-Z |

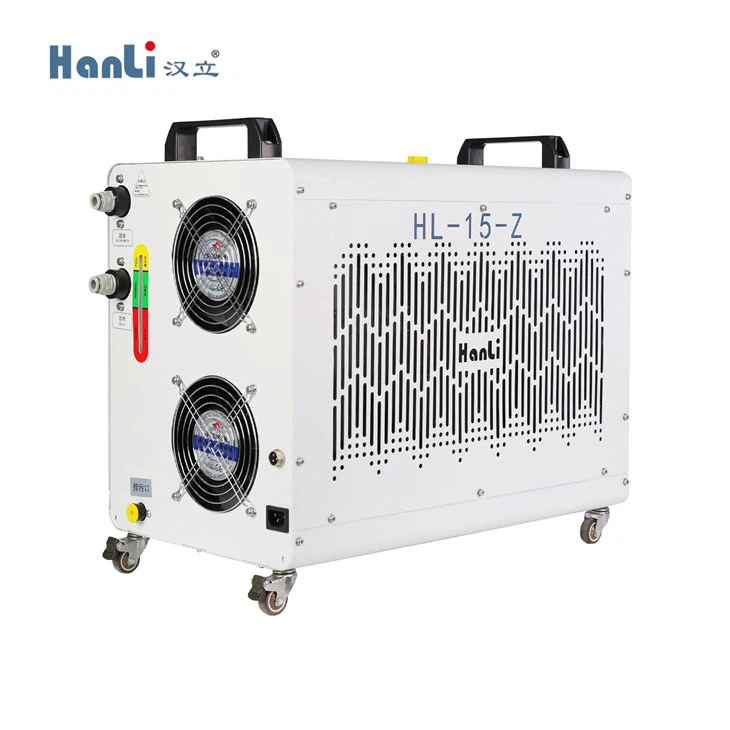

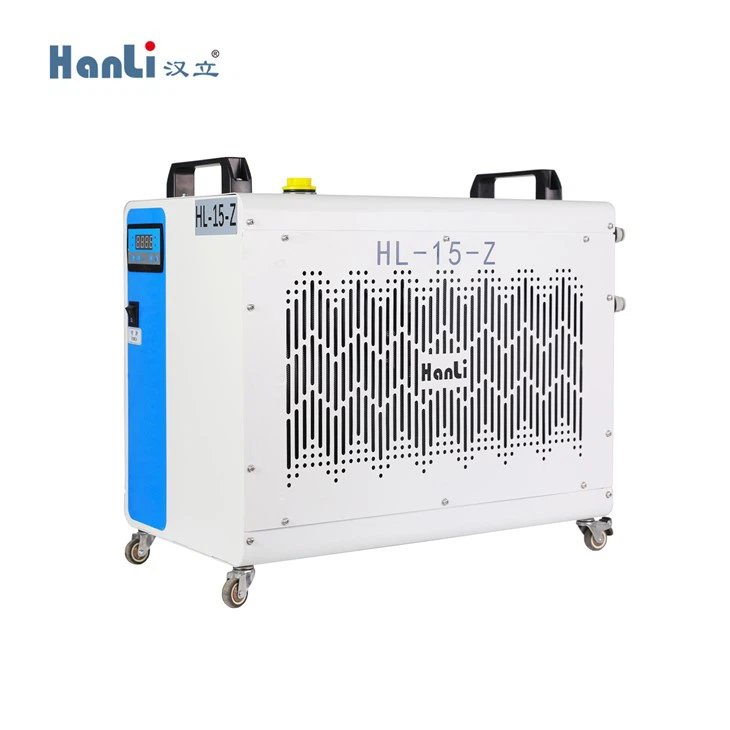

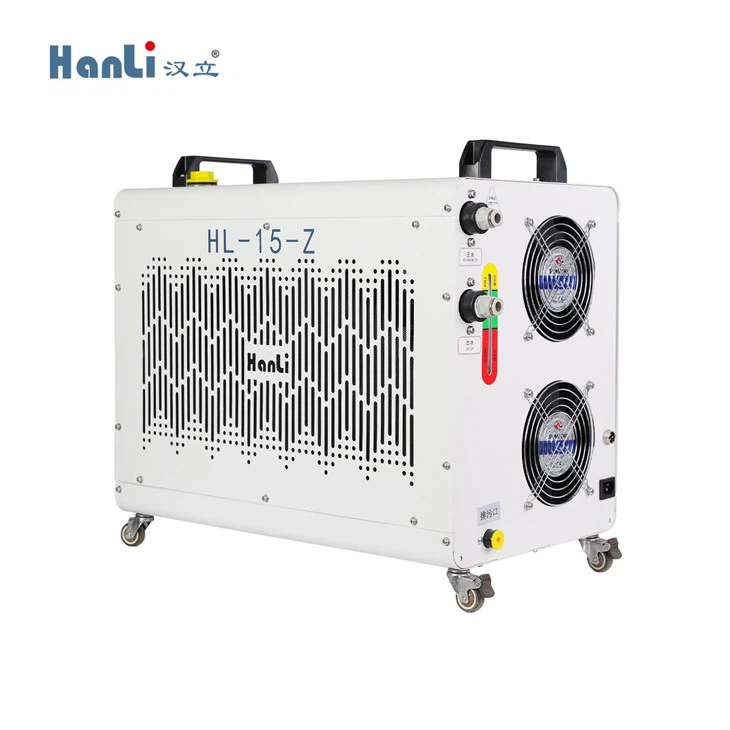

HL-15-Z |
|
Voltage & Zaus |
AC 1P 220 V |
|
|
Lub zog ua haujlwm |
50 Hz |
|
|
Ua haujlwm tam sim no |
2 A |
3 A |
|
Tshuab fais fab |
0.4kW |
0.6 kW |
|
Kev thov ib puag ncig |
0 degree ＜ Ib puag ncig kub ＜45 degree, txheeb ze humidity＜95% |
|
|
Tempe.control qhov tseeb |
± 0.3 degree |
|
|
Coolant |
R134a |
R32 |
|
Lub peev xwm txias |
400W |
900W |
|
Hluav taws xob cua sov |
400W |
400W |
|
Rated dej twj tso kua mis |
16L / min |
|
|
Max.pump nqa |
16 m |
|
|
Lub tshuab fais fab |
50W |
|
|
Tank ntim |
8 L |
|
|
Laser nozzle interface |
Φ10 Ceev connector |
|
|
Dimension |
565 × 313 × 517 hli |
|
|
N.W |
22 kg ib |
24.5 kg ib |
|
Packing loj |
615 × 365 × 550 hli |
|
|
G.W |
24.5 kg ib |
27 kqb |
|
Matching laser qhov chaw |
3-5W UV laser |
10-15W UV laser |
