Fiber Laser npav 1500w

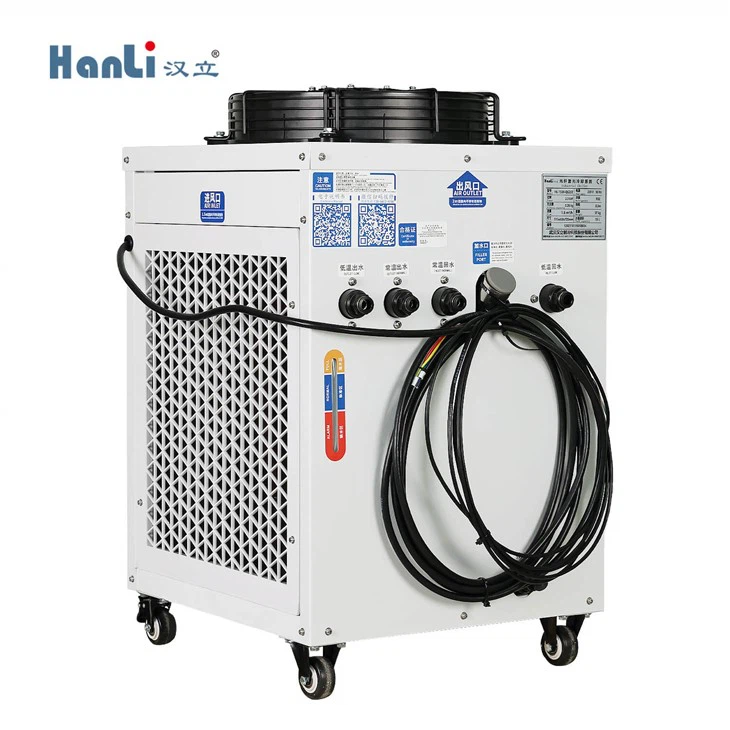

Lub 1500W chiller yog ib qho tseem ceeb rau kev ua kom txias ntawm 1500W laser txiav tshuab
Laser txiav tshuab ua kom muaj cua sov ntau thaum lub sijhawm ua haujlwm, thiab qhov cua sov no tuaj yeem cuam tshuam qhov zoo ntawm kev txiav, ua rau lub tshuab puas tsuaj, thiab tseem ua rau muaj kev nyab xeeb rau tus neeg teb xov tooj.
Lub chiller yog tsim los tshem tawm cov cua sov los ntawm lub tshuab laser thiab dissipate nws mus rau ib puag ncig ib puag ncig, kom ntseeg tau tias lub tshuab tseem nyob ntawm qhov kub thiab txias ua haujlwm.
Lub tshuab chiller kuj tseem tuaj yeem ua rau lub neej ntev ntawm lub tshuab los ntawm kev txo qhov hnav thiab tsim kua muag ntawm cov khoom. Yog tsis muaj lub tshuab chiller, lub tshuab laser txiav yuav raug kev txom nyem los ntawm kev txiav tsis sib xws, txo qhov tseeb, thiab luv luv lifespan
- Khoom Taw qhia
Khoom nta
Lub tshuab chiller yog ib qho tseem ceeb ntawm lub tshuab laser txiav, vim nws pab tshem tawm cov cua kub ntau dhau thaum lub sij hawm laser txiav. Lub 1500w chiller yog tsim tshwj xeeb los txhawb lub 1500w laser txiav tshuab los ntawm kev ua kom txias rau sab hauv ntawm lub tshuab, xws li laser qhov chaw, iav, thiab lo ntsiab muag.
Lub tshuab cua txias ntawm lub tshuab laser txiav yog qhov tseem ceeb los tswj qhov kev txiav txim siab, qhov tseeb, thiab qhov zoo ntawm cov txheej txheem txiav. Lub chiller pab kom qhov kub thiab txias tsis tu ncua thiab tiv thaiv overheating, uas tuaj yeem ua rau lub tshuab puas thiab cuam tshuam rau qhov zoo ntawm cov khoom kawg.
Thaum nws los txog rau cua txias 1500w laser txiav tshuab, lub chiller yuav tsum muaj lub peev xwm txias ntawm 4600w, uas txhais tau hais tias nws tuaj yeem tswj cov cua sov uas tsim los ntawm lub tshuab zoo. Lub chiller yuav tsum muaj peev xwm tswj tau qhov kub thiab txias ntawm ib ncig ntawm 20-25 degree, uas yog qhov zoo tshaj plaws kev khiav hauj lwm kub rau lub laser txiav tshuab.
Hauv kev xaus, 1500w chiller yog ib qho tseem ceeb rau kev ua kom txias ntawm 1500w laser txiav tshuab. Nws pab tswj kev ua tau zoo thiab kev ua haujlwm zoo ntawm lub tshuab los ntawm kev tswj qhov kub thiab txias thaum lub sijhawm laser txiav. Kev nqis peev hauv lub tshuab chiller zoo yuav ua kom lub neej ntev ntawm koj lub tshuab laser txiav thiab txhim kho qhov tseeb ntawm cov txheej txheem txiav.
Specification
|
Qauv (I Model) |
HL-20000-QG2/2 |
HL-20000-EH-QG2/2 |
|
Voltage & Zaus |
3p 380V / 50Hz |
3p 380V / 60Hz |
|
siab tshaj tam sim no |
40.0A |
40.0A |
|
Rated zog |
28 0kW |
28 0kW |
|
Lub zog nees |
13hp ua |
15hp ua |
|
Compressor zog |
9.736 qw |
10, 85kw |
|
Hluav taws xob cua sov |
3+3.75Kw |
|
|
Lub tshuab fais fab |
3.5w |
4 0kw |
|
Ntxuam zog |
0.65kw |
0.75kw |
|
Qhov siab tshaj plaws cua ntim ntawm tus kiv cua |
8400*2m³./h |
8450*2m³./h |
|
Rated Flow ntawm qhov kub qis kawg |
Ntau tshaj lossis sib npaug li 220 L / min |
|
|
Rated siab ntawm qis kub kawg |
5. 0bar |
|
|
Qhov siab tshaj plaws ntawm qhov kub qis kawg |
8.4bar ib |
|
|
Dimensions ntawm qhov kub siab kawg interface |
G1-1/2-Φ38mm ceev connector |
|
|
Dej kub qhov chaw ntawm qhov kub tsis tshua muaj qhov kawg |
21-32 degree |
|
|
Rated Flow ntawm qhov kub siab kawg |
4.5L / min |
|
|
Rated siab ntawm qhov kub siab kawg |
5. 0bar |
|
|
Qhov ntev ntawm qhov kub siab kawg interface |
G1/2-Φ13mm ceev connector |
|
|
Dej kub qhov chaw ntawm qhov kub siab kawg |
26-35 degree |
|
|
Dej kub tswj qhov tseeb |
± 1 degree |
|
|
Dej Tank |
180L |
|
|
Kev thov ib puag ncig |
5-40 degree |
|
|
Coolant |
R32 |
|
|
Lub suab nrov |
≈75dB(A) |
|
|
Net nyhav |
250 KG |
|
|
Tshuab dimension |
1690 × 750 × 1080mm |
|
|
Haum cua txias nruab nrab |
Cov dej ntshiab, glycol tov (concentration Tsawg dua lossis sib npaug li 30%) |
|
|
型号 Model |
HL-20000-QG2/2 |
HL-20000-EH-QG2/2 |
|
Voltage & Zaus |
3p 380V / 50Hz |
3p 380V / 60Hz |
|
siab tshaj tam sim no |
40.0A |
40.0A |
|
Rated zog |
28 0kW |
28 0kW |
|
Lub zog nees |
13hp ua |
15hp ua |
|
Compressor zog |
9.736 qw |
10, 85kw |
|
Hluav taws xob cua sov |
3+3.75Kw |
|
|
Lub tshuab fais fab |
3.5w |
4 0kw |
|
Ntxuam zog |
0.65kw |
0.75kw |
|
Qhov siab tshaj plaws cua ntim ntawm tus kiv cua |
8400*2m³./h |
8450*2m³./h |
|
Rated Flow ntawm qhov kub qis kawg |
Ntau tshaj lossis sib npaug li 220 L / min |
|
|
Rated siab ntawm qis kub kawg |
5. 0bar |
|
|
Qhov siab tshaj plaws ntawm qhov kub qis kawg |
8.4bar ib |
|
|
Dimensions ntawm qhov kub siab kawg interface |
G1-1/2-Φ38mm ceev connector |
|
|
Dej kub qhov chaw ntawm qhov kub tsis tshua muaj qhov kawg |
21-32 degree |
|
|
Rated Flow ntawm qhov kub siab kawg |
4.5L / min |
|
|
Rated siab ntawm qhov kub siab kawg |
5. 0bar |
|
|
Qhov ntev ntawm qhov kub siab kawg interface |
G1/2-Φ13mm ceev connector |
|
|
Dej kub qhov chaw ntawm qhov kub siab kawg |
26-35 degree |
|
|
Dej kub tswj qhov tseeb |
± 1 degree |
|
|
Dej Tank |
180L |
|
|
Kev thov ib puag ncig |
5-40 degree |
|
|
Coolant |
R32 |
|
|
Lub suab nrov |
≈75dB(A) |
|
|
Net nyhav |
250 KG |
|
|
Tshuab dimension |
1690 × 750 × 1080mm |
|
|
Haum cua txias nruab nrab |
Cov dej ntshiab, glycol tov (concentration Tsawg dua lossis sib npaug li 30%) |
|
